FRAMA™ 7800
Multi-Purpose System: Frames, Trusses, Panels, Floor Joists (150 to 300mm / 6" to 12" Sections)
- Gauge Range
-
- Production Speed
-
- Dimensions L x W x H
-

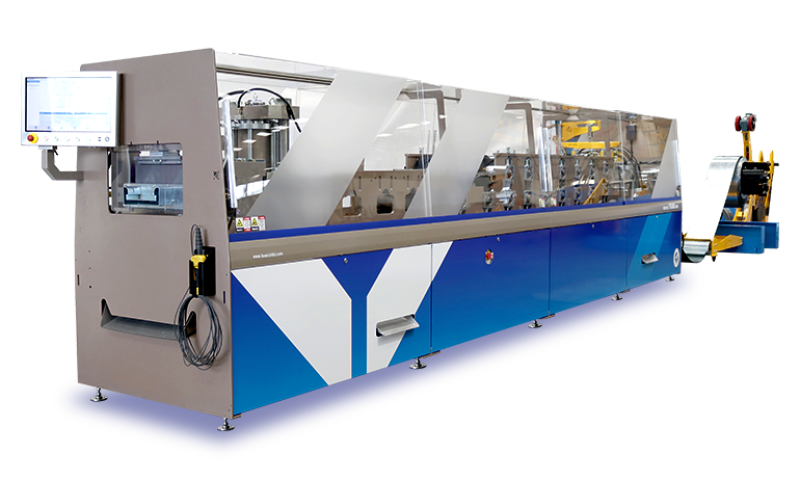

The big brother to them all, the FRAMA™ 7800 is truly multi-purpose. It allows you to manufacture frames, trusses, panels or floor joists – with sections from 150 to 300mm (6” to 12”). With all the benefits outlined above for the FRAMA™ 7600, (this one is also convertible for up to 5 profile widths) it is available in 3 different configurations: for floor joist production; framing production; or customised with frame and joist tooling.
The system offers a gauge range of 1.85 to 2.5mm (16 to 13 gauge) and outputs up to 750m or 2,460’ per hour.
The big brother to them all, the FRAMA™ 7800 is truly multi-purpose. It allows you to manufacture frames, trusses, panels or floor joists – with sections from 150 to 300mm (6” to 12”). With all the benefits outlined above for the FRAMA™ 7600, (this one is also convertible for up to 5 profile widths) it is available in 3 different configurations: for floor joist production; framing production; or customised with frame and joist tooling.
The system offers a gauge range of 1.85 to 2.5mm (16 to 13 gauge) and outputs up to 750m or 2,460’ per hour.
The FRAMA™ 7800 is available in 3 configurations for floor joist production, framing production or as a customized set of frame and joist tooling. It is convertible up to 5 framing sizes.

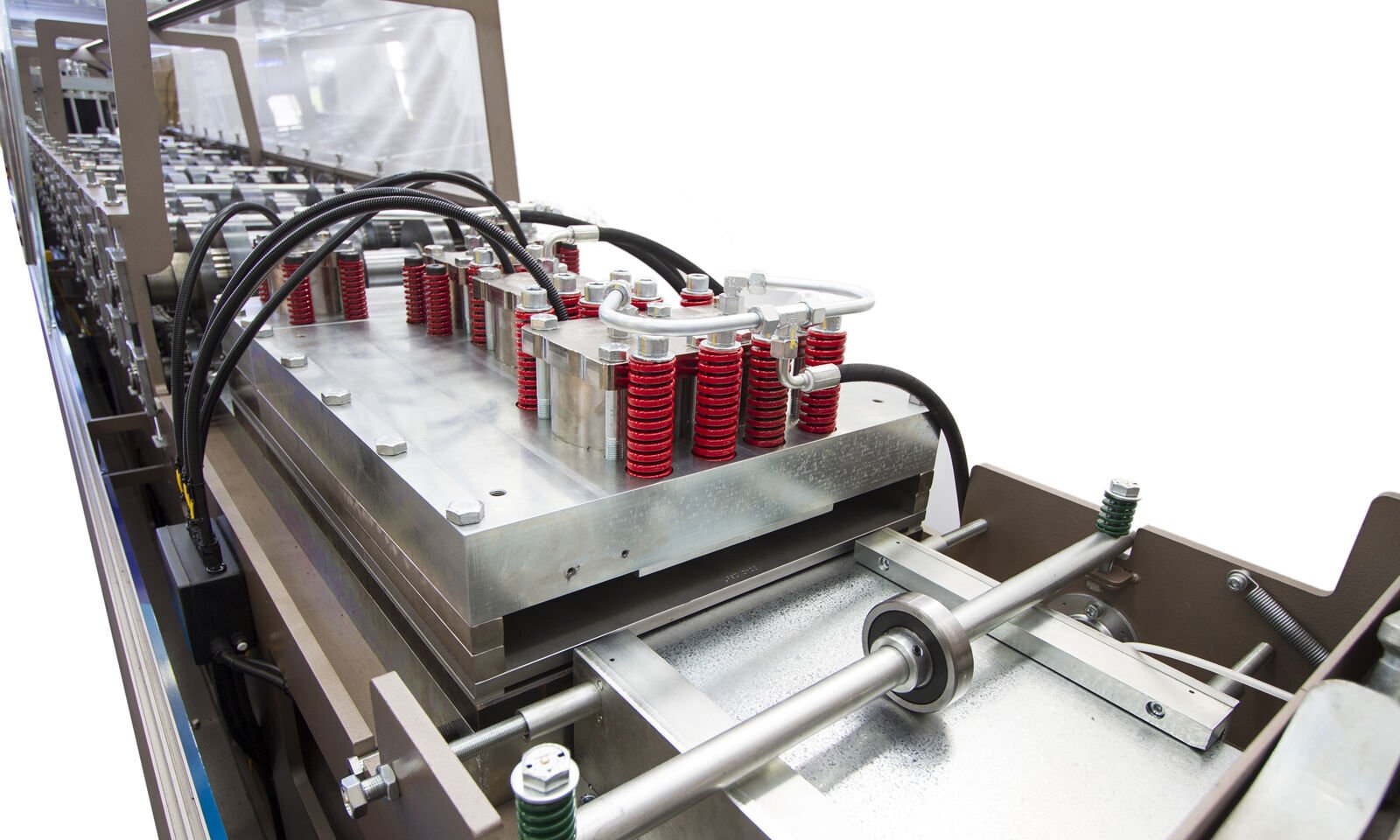

With the unique design of the FRAMA™ 7800 machine, you can produce a single profile size and add additional tooling sets for remaining profile options as/or when needed, without the cost and complication of a multiple profile roll-former.
Howick's convertible machine design overcomes many of the compromises that go with making multiple sections with adjustable tooling. The compact design of FRAMA™ 7800 means less material wastage when changing section width and higher product accuracy. Convertible design ethos means you can add tooling for additional widths as required. If your production requirements increase, you can buy another base unit and use your existing tooling to run multiple lines at once.
The machine operation is taken from Howick's proven reliable design concepts to minimize down time and maximize production.
| FRAMA™ 7800 | ||
| Dimensions L X W X H | 7.4m x 1.2m x 1.8m | 24' 3" x 3' 11" x 5' 10" |
| Weight | 8400kg | 18519lb |
| Drive Motor Power | 15kW | 20hp |
| Hydraulic Power | 5.5kW | 7.4hp |
| Hydraulic Tank | 60L | 15.85gal |
| Hydraulic Cooler | Optional | |
| Forming Stages | 13 | |
| Line Speed | 21m/min | 70'/min |
| Production Speed | 400 - 750m/hr.* | 1312 - 2460'/hr.* |
| Touch Screen | Panel PC (Windows 10) | |
| Machine Control | FRAMA Machine Control | |
| Machine Input Files | CSV | |
| Tooling | Varies depending on configuration selected | |
| Component Marking | Dual Head Inkjet Printer | |
| Decoiler | ||
| 3.0T Decoiler | 6600lb Decoiler | |
| Dimensions L X W X H | 1.35m x 1.0m x 1.45m | 4' 5" x 3' 3" x 4' 9" |
| Weight | 700kg | 1550lb |
| Drive Motor | 4.0kW | 5.4hp |
| Jaws | 3 Jaw Self Centring | |
| Jaw Expansion | Hydraulic | |
| Jaw Expansion Range | 480mm - 520mm | 1' 7'' - 1' 8 1/2'' |
| Speed Control | Dancer Arm with Inclinometer | |
| Auto Pause at Coil End | ||
| Max Coil Weight | 3000kg | 6600lb |
| Mac Coil Width | 400mm | 1'3 3/4'' |
| Mac Coil OD | 1500mm | 4' 11"' |
| Nominal Bore | 508mm | 1' 8'' |
| Safety | CE, UL, Cat 3 Compliant | |
| Guarding | Fully Guarded Chains & Electrical Controls | |
| * Production Speed will vary due to component complexity.Howick Ltd Reserve the right to update the machine specification without notice. | ||
STANDARD METRIC SIZES
|
Web Size |
150mm | 200mm | 250mm | 300mm | 350mm |
| Flange Size | 50mm | 50mm | 50mm | 50mm | 50mm |
| Lip Size | 15mm | 15mm | 15mm | 15mm | 15mm |
| Nominal Coil Width | 260mm | 310mm | 360mm | 410mm | 460mm |
| Service Hole | 34.1mm | 34.1mm | 34.1mm | 34.1mm | 34.1mm |
| Swaged Service Hole | - | 80mm | 140mm | 140mm | 140mm |
| Bolt Hole | 13mm | 13mm | 13mm | 13mm | 13mm |
| Fixing Tab | Single | Single | Double | Double | Double |
STANDARD IMPERIAL SIZES
|
Web Size |
6'' | 8'' | 10'' | 12'' | 14'' |
| Flange Height | 2" | 2" | 2" | 2" | 2" |
| Lip Size | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" |
| Nominal Coil Width | 10 7/16'' | 12 7/16'' | 14 7/16'' | 16 13/32'' | 18 3/8" |
| Service Hole | 1 1/2'' | 1 1/2'' | 1 1/2'' | 1 1/2'' | 1 1/2'' |
| Swaged Service Hole | - | 3'' | 5.5'' | 5.5'' | 5.5'' |
| Bolt Hole | 1/2'' | 1/2'' | 1/2'' | 1/2'' | 1/2'' |
| Fixing Tab | Single | Single | Double | Double | Double |
